Description
The BITVISH Thermal R30 is a scope-style thermal imaging device designed for outdoor observation, field monitoring, inspection, and heat-source detection. It features a 384 x 288 uncooled VOx sensor, 1440 x 1080 video resolution, 50Hz image frame rate, 2.8X base magnification, and 2.8-22.4X digital zoom.
The R30 supports multiple thermal image modes, including WT-HOT, BK-HOT, RD-HOT, GN-HOT, IRON RED, and BLEND. With a 35 mm F1.0 objective lens, 18mK NETD, Micro-OLED display, IP67 waterproof rating, and 5 m to 1,000 m measuring distance, it is suitable for users who need practical thermal imaging support in outdoor and field environments.
Key Features
384 x 288 Uncooled VOx Sensor
Equipped with a 384 x 288 uncooled VOx thermal sensor for heat-source observation.
18mK NETD
Supports 18mK NETD according to the provided product specifications.
50Hz Image Frame Rate
Provides a 50Hz image frame rate for smooth visual output.

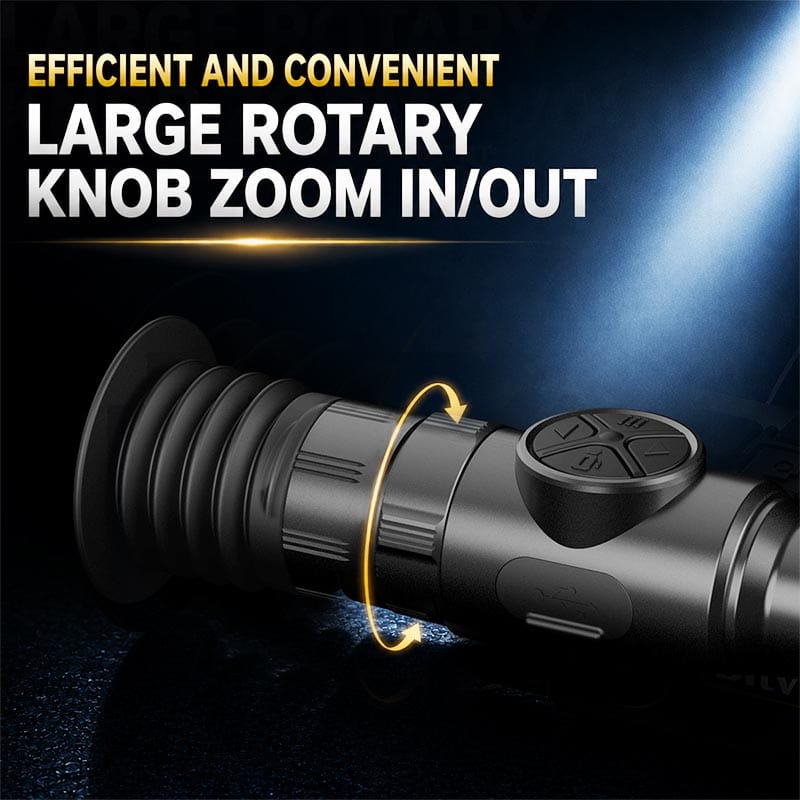

2.8X Base Magnification with 2.8-22.4X Digital Zoom
Supports flexible thermal observation from wider viewing to closer detail inspection.
35 mm F1.0 Objective Lens
Uses a 35 mm F1.0 objective lens for thermal imaging observation.
Multiple Image Modes
Supports WT-HOT, BK-HOT, RD-HOT, GN-HOT, IRON RED, and BLEND image modes.
Micro-OLED Display
Equipped with a Micro-OLED display and 1440 x 1080 screen resolution.
Long Working Time
Powered by a 21700 flat head battery with up to 8 hours of working time.
IP67 Waterproof Rating
Designed for outdoor use in field environments.
Extended Measuring Range
Supports 5 m to 1,000 m measuring distance according to the provided product specifications.
Application Scenarios
- Thermal observation
- Outdoor observation
- Wildlife observation
- Field monitoring
- Security patrol support
- Inspection and monitoring
- Low-light environment viewing
- Heat-source detection

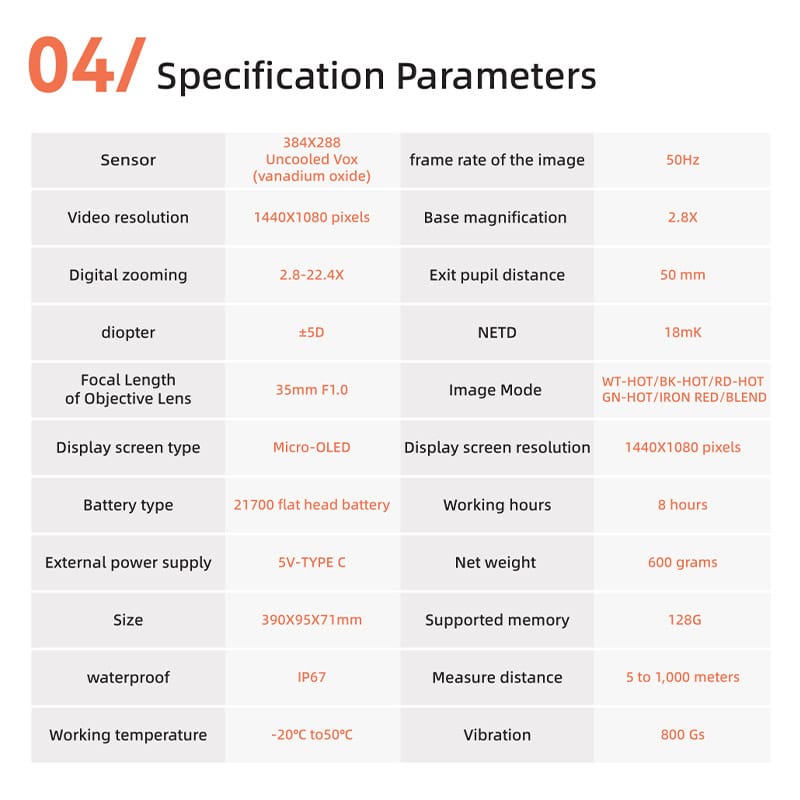

| Item | Specification |
|---|---|
| Product Name | Thermal R30 |
| Sensor | 384 x 288 Uncooled VOx (vanadium oxide) |
| Video Resolution | 1440 x 1080 pixels |
| Image Frame Rate | 50Hz |
| Base Magnification | 2.8X |
| Digital Zoom | 2.8-22.4X |
| Exit Pupil Distance | 50 mm |
| Diopter | ±5D |
| NETD | 18mK |
| Focal Length of Objective Lens | 35 mm F1.0 |
| Image Mode | WT-HOT / BK-HOT / RD-HOT / GN-HOT / IRON RED / BLEND |
| Display Type | Micro-OLED |
| Display Resolution | 1440 x 1080 pixels |
| Battery Type | 21700 flat head battery |
| Working Time | 8 hours |
| External Power Supply | 5V Type-C |
| Net Weight | 600 g |
| Product Size | 390 x 95 x 71 mm |
| Supported Memory | 128G |
| Waterproof Rating | IP67 |
| Measuring Distance | 5 m to 1,000 m |
| Working Temperature | -20°C to 50°C |
| Vibration | 800 Gs |
